Through Axle Set for Roaddisc Rear 12x142
Introduction
RapiLock Axle — One Axle, Endless Compatibility
Simplifying Thru-Axle Standards
As thru-axles become the mainstream in both mountain and road bikes, the explosion of varying fork and frame standards has created a challenge for bike shops and riders alike.
RapiLock Axle is engineered to solve this.
With 5 axle lengths (105 / 133 / 147 / 154 / 164mm) and multiple thread pitches (P1.0 / P1.5 / P1.75), RapiLock Axle adapts to over 60 different specifications, offering a streamlined solution for retailers and consumers. A comprehensive measurement guide is included to ensure a perfect fit every time.
Key Features
# Universal Compatibility
RapiLock Axle covers over 80% of disc brake road bikes on the market with just 6 thread pitch options, eliminating the need for excessive stock in bike shops.
# Award-Winning Innovation
Winner of the 2017 Taipei Cycle d&i Gold Award, recognized for its problem-solving design and structural safety enhancements.
# Integrated Hidden Lever
Featuring a sleek, hidden lever mechanism that prevents accidental release during rides, ensuring both performance and rider safety.
# Lightweight & Clean Aesthetics
Crafted with precision and minimalism, the axle’s design blends seamlessly into any bike’s frame, combining functionality with modern aesthetics.
Specification

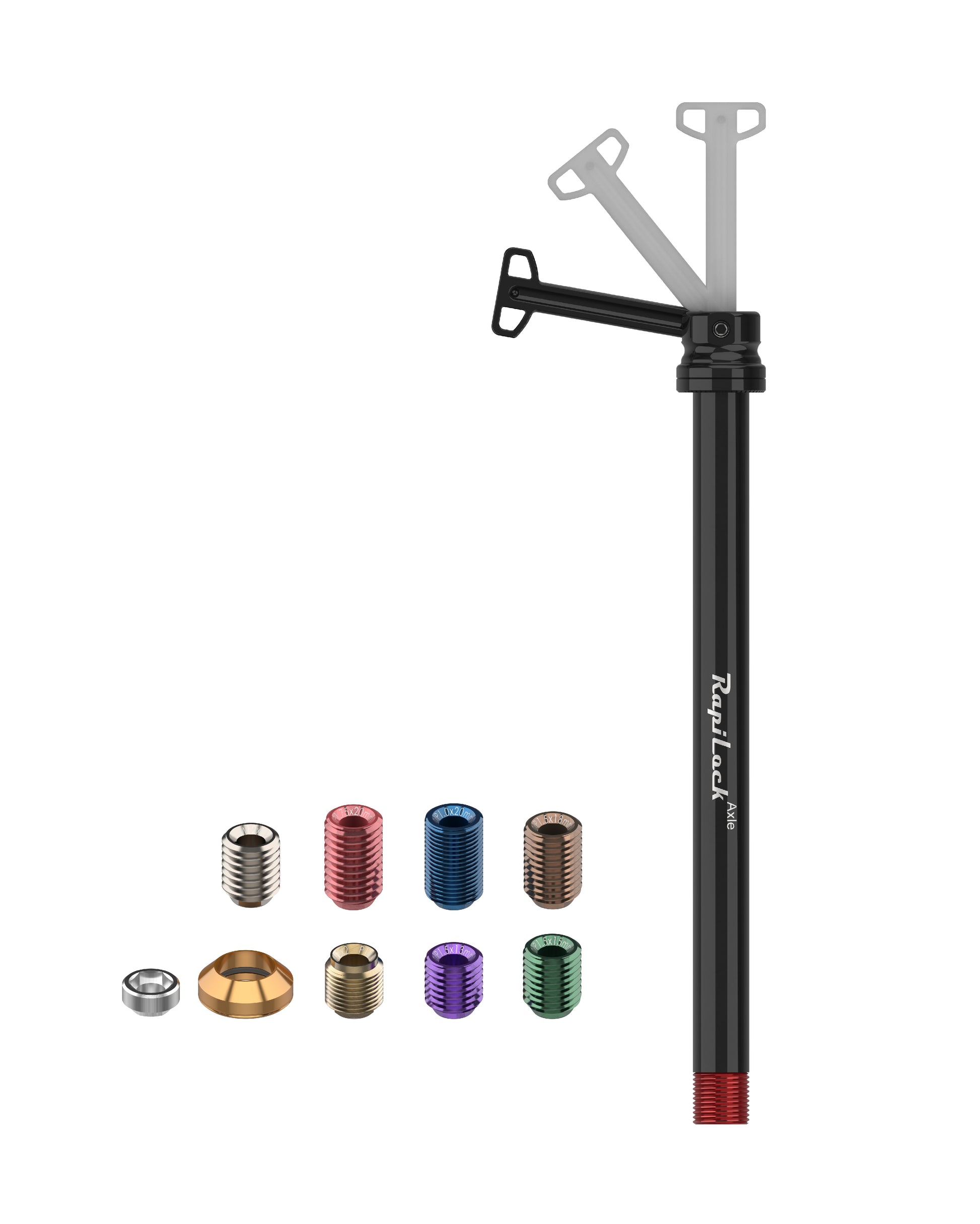

| Product | RapiLock AXLE 147 |
| Lever Material | Alloy |
| Axle Material | Aluminum 7075-T6 |
| Axle Diameter | 12 mm |
| Axle Length | 147 mm |
| Thread Length | Red: M12 x P1.0, 13mm Blue: M12 x P1.0, 20mm Purple: M12 x P1.5, 13mm Green: M12 x P1.5, 15mm Brown: M12 x P1.5, 18mm Titanium: M12 x P1.75, 13mm Pink: M12 x P1.75, 20mm Gold: M12 x P1.0 x2 Double Thread, 13mm |
| Weight |
55 g (Axle+Thread Length 13mm for reference) |
| Includes |
Axle Ø12x147mm x1 Thread x8 (Multiple Pitches & Lengths) Skewer x1 Spacer x1 Cone x1 Allen wrench x1 |
Product Manual & Care Guidelines
All RapiLock products are tested and certified under ISO 4210 standards.
For detailed installation and usage instructions, please refer to the user manual below.
View User Manual
